Carburettor 30/31 PICT 1 Single Arm With Adapter: Beetle (1960-1979), T2 Bay (1968-1979), T2 Split Bus (1960-1967)

A ''universal'' 1300cc carburettor fitted with a 1600cc main jet

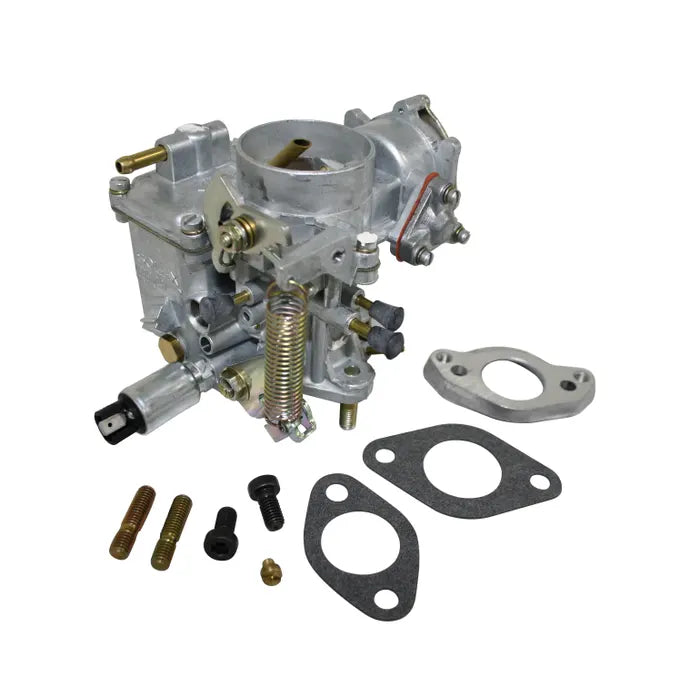

Brosol or EMPI 30/31 PICT 1 single arm carburettor with cut off valve.

Comes supplied with 130 Main jet fitted for use with 1600cc engines. A 120 main jet is supplied loose in the box for smaller engines 1200-1500cc. An adapter plate is included for the fitment to 1600cc manifolds this is not used on 1200-1500cc engines.

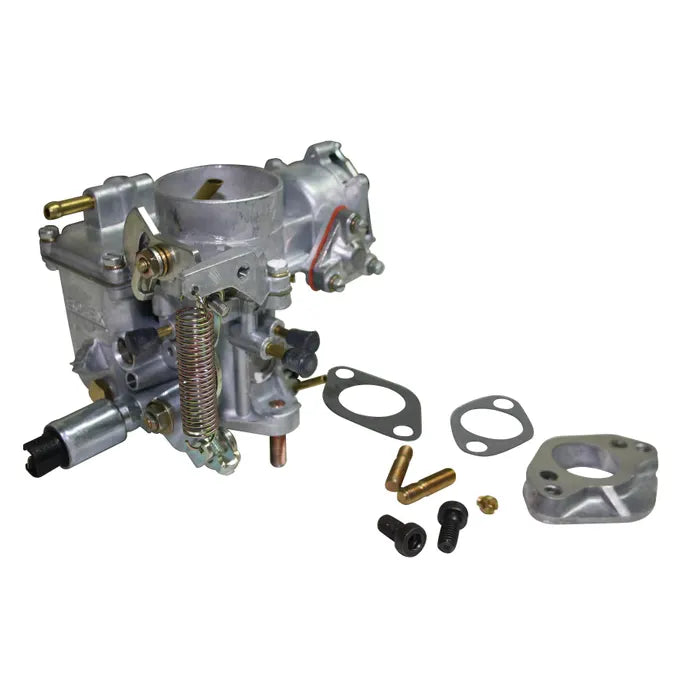

In the box is the adapter kit to fit it to a 1600cc twinport manifold.

Also in the box is a 1300cc main jet to be fitted if you wish to use the carb on a 1200cc or 1300cc engine.
You do not need the manifold adapter for this.

If you wish to use the carb on a 1500cc/1600cc single port engine leave the 1600cc main jet in and do not use the adapter plate.

T1 Beetle 60-79,

T2 Splitscreen 60-67,

T2 Baywindow 68-79
