Master cylinder with servo Bus 08/70-07/79

Master cylinder with servo

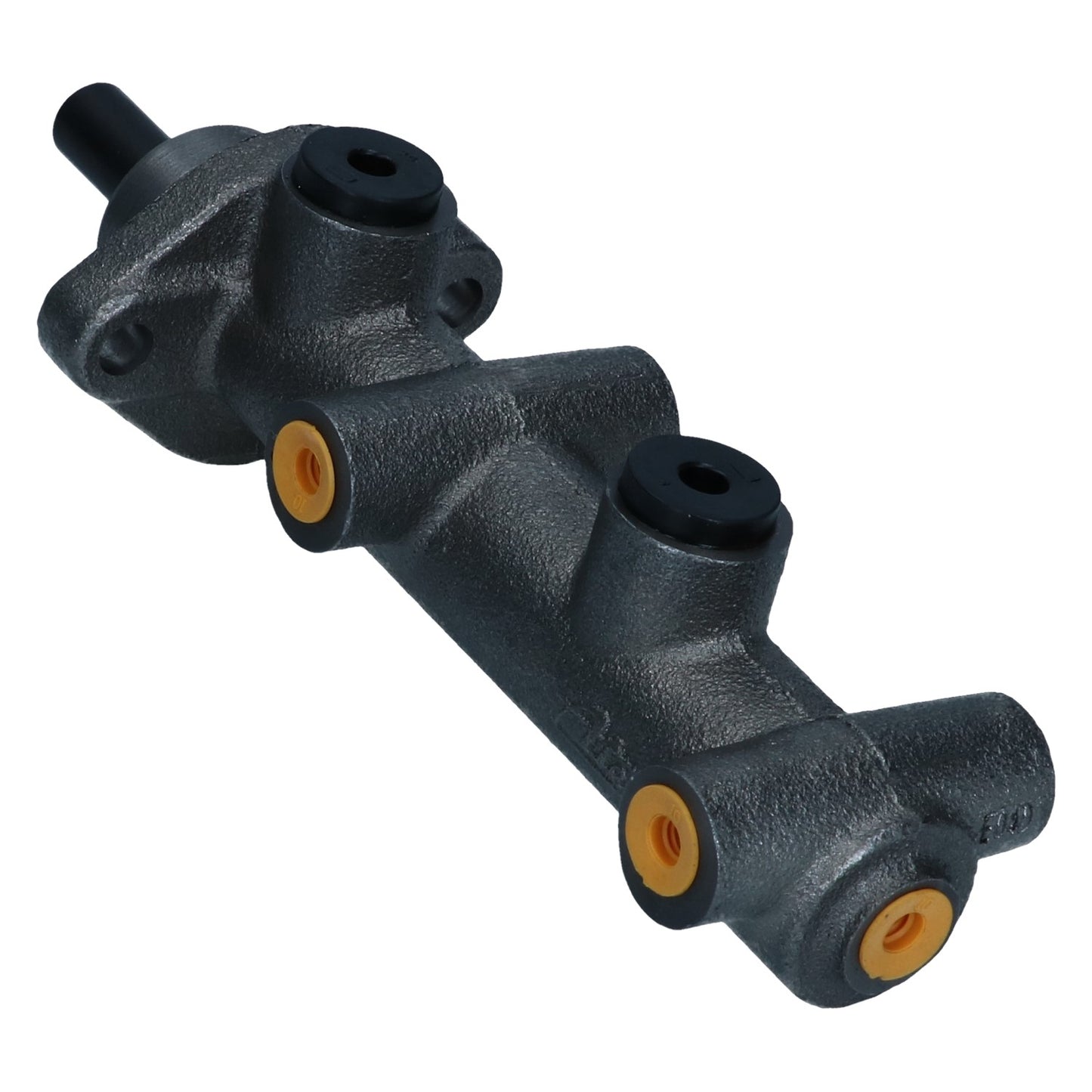

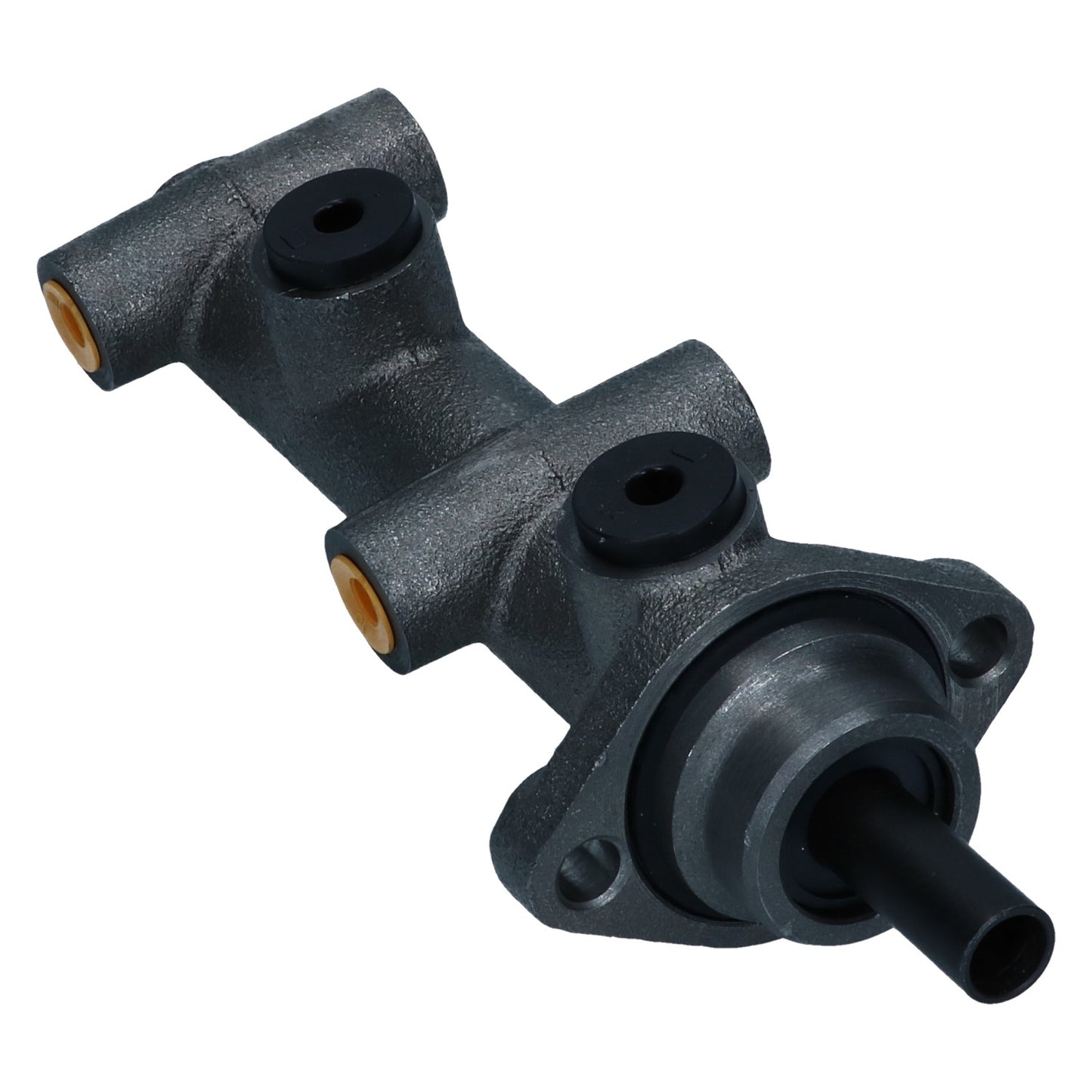

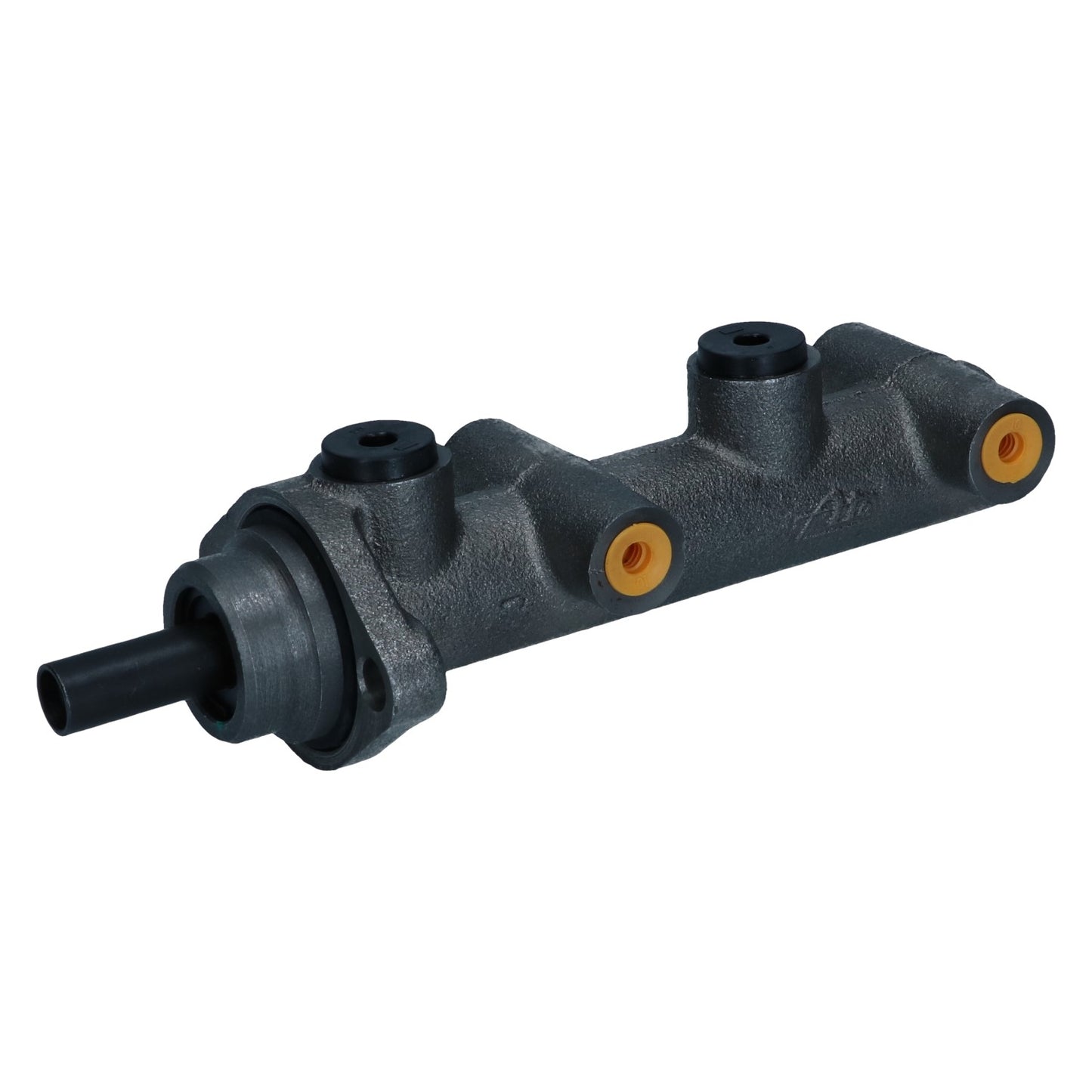

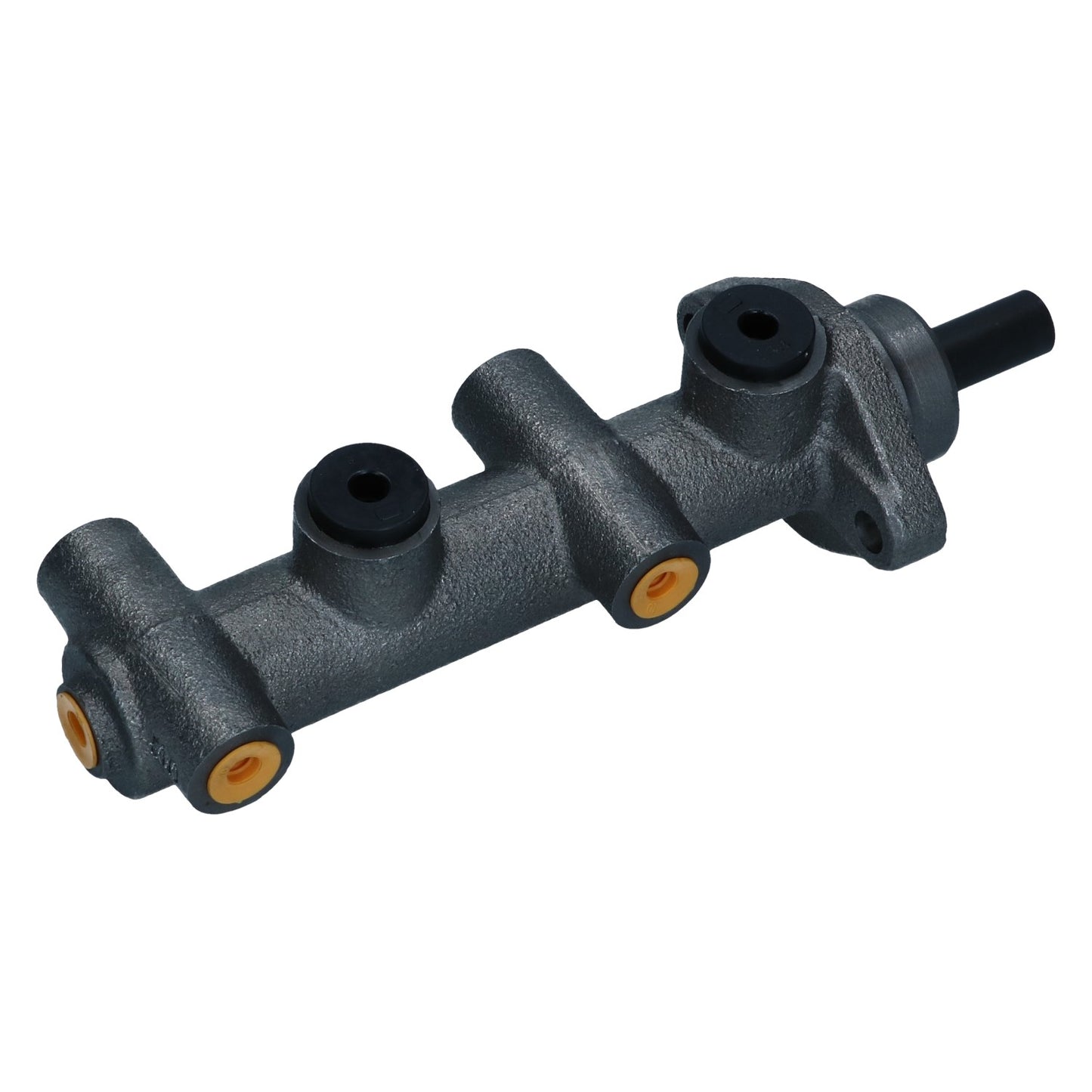

In addition to the TRW master brake cylinder (with servo) for the T2 baywindow 08/70-, we also have the ATE version in our program.These have 5 outlets because on Brazilian T2s the front brake lines are each connected separately to the master brake cylinder, while on German T2s there is only 1 line which is then split.This master brake cylinder has 5 outputs, which makes it suitable for both LHD and RHD or if you like to connect the front brakes separately, as on the Brazilian T2.You mount the 2nd brake pressure contact in the rear output and you can easily close the remaining output with a bleed nipple (BBT 1229-20).These cylinders are also used to mount a double circuit and/or brake servo on a split bus, provided that an adapter is used.
