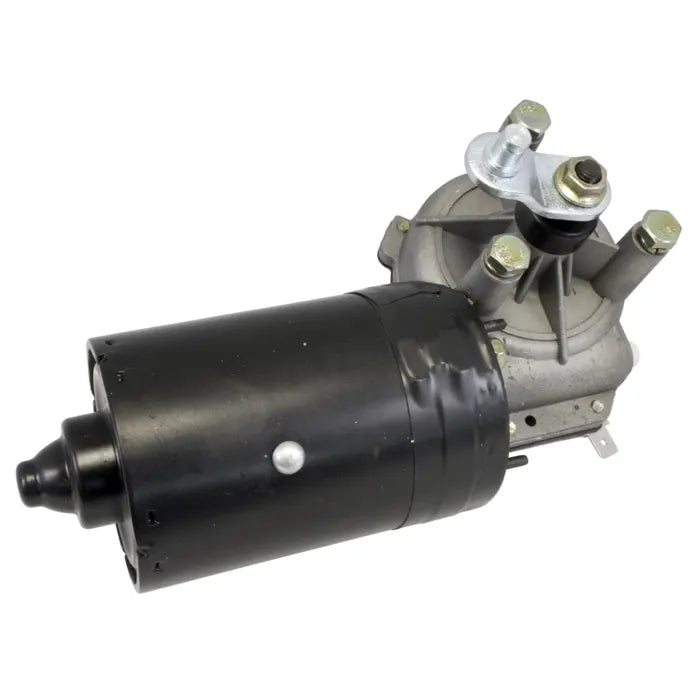

Wiper Motor for Column Mounted Switch > Beetle 1970-1979

12 volt windscreen wiper motor for flat screen 1300-1500cc models with column mounted switch and 1200 deluxe models from 1976 on.

Not 1303 or standard 1200cc models.

The original wiring colours/terminal is as follows:

53a black/grey, 31b or 53e green, 53b black/yellow, 31 brown, 53 black.

For new motors with mixed coloured wiring the red wire is the earth wire / terminal 31, the green wire is the slow speed / terminal 53, the yellow wire is the fast speed / terminal 53b, the black wire is park / terminal 53a and the white wire is the park link / terminal 31b/53e.

For new motors with blue wiring the black wire is the earth wire / terminal 31, the blue/white wire is the slow speed / terminal 53, the blue/red wire is the fast speed / terminal 53b, the plain blue wire is park / terminal 53a and the blue/black wire is the park link / terminal 31b/53e.
